Rockarmor Gt Steel Hoop Bull Bar - Toyota Prado 150 Series 11/2017+

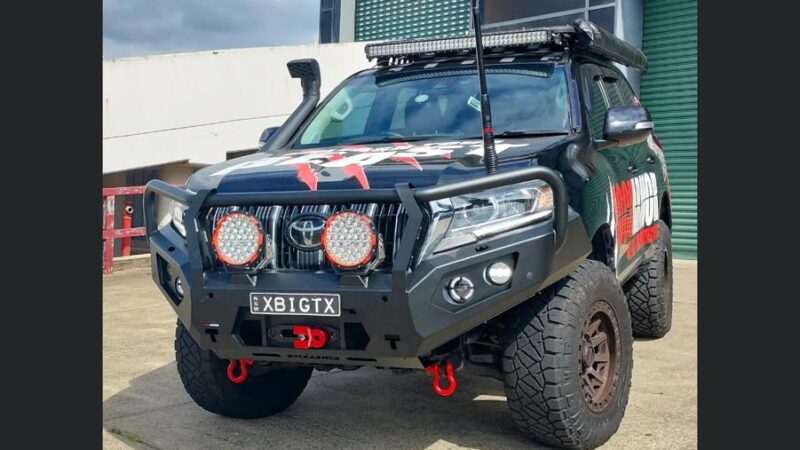

Rockarmor GT Steel Hoop Bull Bar - Toyota Prado 150 Series 11/2017+

Designed in Sydney Australia, Rockarmor’s design team left no stone unturned, making sure the Rockarmor GT Prado 150 bull bar woud cater for the true 4x4 enthusiast.

With the combination of aggressive lines & sleek touches, which is sure to seek attention from fellow car lovers, Rockarmor’s engineers intergrated every essential feature that benefits all Prado 150 owners for all types of terrains & situations they may encounter

Features & Specifications:

• Built in 3.2Tonne Rated Recovery Points
• 52 mm Top cross tube for maximum frontal protection
• Durable 2.8mm High Quality steel construction for maximum protection
• Designed for high approach angles
• Built in LED FOG lights & LED Indicator, compatible with factory controls
• Extended centre Bash Plate Included
• ADR Complied Air bag compatible mounting system
• Factory Sensor & Front Camera Compatible

• Side under Protection panels Included
• Twin Slotted Antenna Mounts located on top Cross Tube
• Twin Hi-Lift jack points
• Front Protection Buffers
• Accommodation for Electric Winch up to 12,000 pound
• Laser cut Holes to accommodate for driving lights
• Shot blasted, Chemical Washed
• Finished off in a high quality black powder coat finish

INSTALLATION

To comply with NZTA all daytime running lights should be installed separately to your headlights. Also note that the fog lights need to be adjusted to three degrees down.

If your vehicle's suspension is not upgraded to withstand 60-100kgs, we do recommend that you upgrade the suspension, especially in the front of the vehicle to withstand the weight of the Steel Bumper & optional winch (if an electric winch is installed with the bull bar) If your vehicle's suspension is not upgraded, or if you are running factory suspension, your front suspension will sag and the ride will become bumpy which can possibly lead to further damage.

We recommend when fitting the bull bar to leave a minimum 10-15mm gap between the bullbar and body of the vehicle. This will allow for movement where the chassis & body move independently.
